BS540VS Bandsaw

price from £POA+VAT

THE NEW ACM METAL CUTTING BANDSAW

Our new ACM Variable Speed Band Saw has been designed with blade speeds to cut ferrous & non ferrous materials including:

  • Mild Steel
  • Iron
  • Aluminium
  • Brass
  • Copper
  • Rubber
  • Plastics
  • Wood

STANDARD EQUIPMENT:

  • 400V/3/50 Self-braking Motor
  • Supplementary Stop on the Front Side of the Table
  • Solid Flywheels (1/3 crowned in the front) without Rubber
  • Bronze Scrapers on Flywheels
  • Upper Saw Blade Guide with Bronze Side Elements
  • Lower Saw Blade Guide with Bronze Side Elements
  • Blade Tension Gauge
  • Gravity-fed Blade Lubrication System on Felt Pad

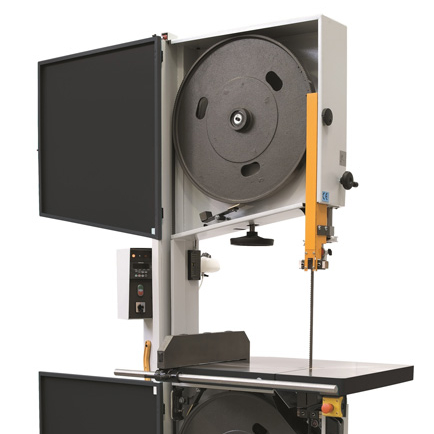

BS540VS Bandsaw

Click Image to Enlarge

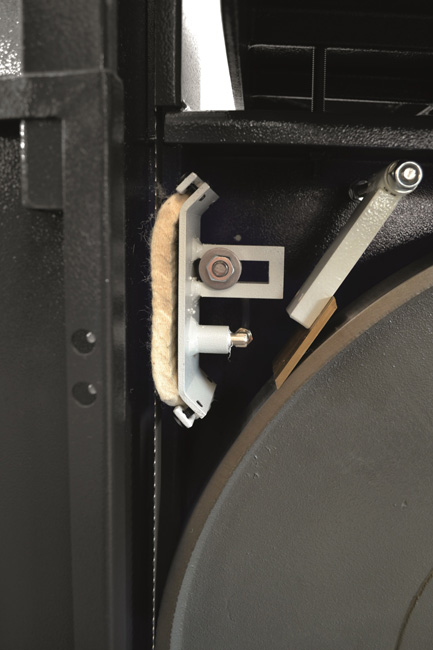

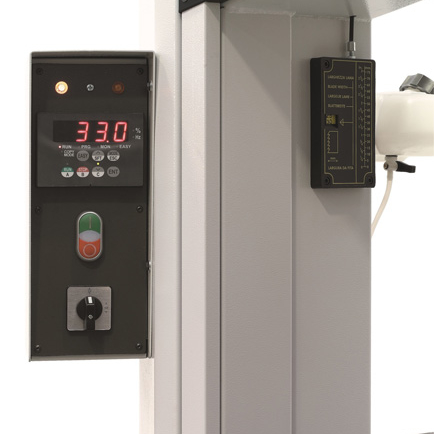

Solid Cast Iron Uncovered Wheels To Give A Smooth & Powerful Cutk Inverter With A Range Between 50 To 1200 Metres Per Minute Gives The Operator Complete Control Of Cutting Speed Lubrication Pad With Wheel Scraper - Uncovered Wheels Do Not Collect Damaging Swarf Blade Speeds For Cutting All Ferrous Materials Blade Speeds For Cutting All Light Alloys In Section Or Solid Form Blade Speeds For Cutting From The Stiffest Composite Materials To The Most Elastic Surfaces Blade Speeds For Cutting All Timber & Timber Products

Specification

  BS 540 VS
Fly-wheels Diameter 530mm*
Blade Speed – M/Min 50-1200 Metres Per Minute
Motor Power 3hp
Cutting Height Max. 350mm
Cutting Width Max. 510mm
Blade Length Min:4170mm - Max:4250mm
Dust Suction Outlet 2xØ120
Table Size 520 x 720mm
Overall Dimensions Dimensions
(W x D x H)		 870 x 620 x 1970mm
Overall Packing Dimensions
(W x D x H)		 900 x 700 x 2200mm
Net Weight 240kg
