New Evolution Education Band Saw Range

price £POA+VAT

A FIRST OF ITS KIND Band Saw, designed and engineered to give technicians and students maximum security combined with the traditional solidity and quality of an ACM Band Saw - with built in monitor to show real time or recorded demonstrations,

TCHD Video Camera with built-in stand, for real time filming of the lessons.

Built-in all in one computer with USB and Ethernet sockets, A powerful PC with 21.5” Touch Screen for real time visual and recording for playback for Teachers & Students use.

Wi-Fi Signal repeaters for a quick & stable transmission to Multimedia devices.

Available as 540 and 640 - in 240 or 415 Volt models.

Like all ACM Machines our Evolution Band Saws are manufactured in Italy.

Evolution Education Band Saw Range comes with as standard:

  • Integrated all-in-one PC with USB/Ethernet sockets
  • HD Video Camera with articulated support
  • Wi-Fi Signal repeaters
  • Solid Band Wheels, Rubbered Covered

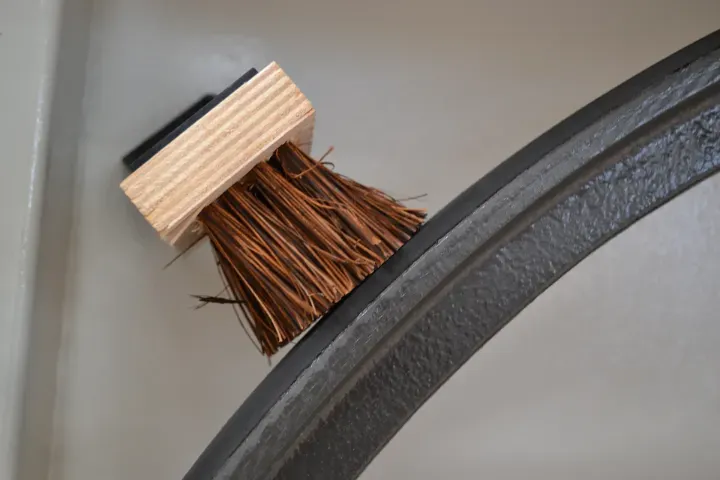

  • Cleaning Brush on Lower Wheel
  • Tilting Table 0-20 Degrees

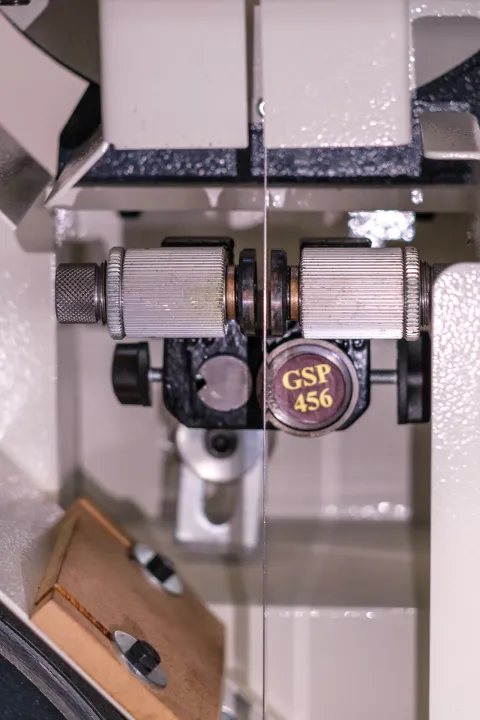

  • Upper and Lower Roller Blade Guides
  • Self Releasing Kick Stop
  • Blade Tension Indicator

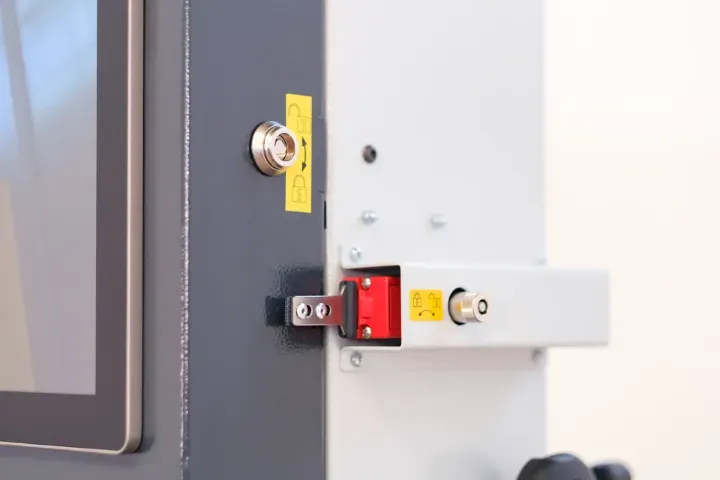

  • Key Locked Security System on Doors and Isolator
  • Manufactured in Italy for Consistency and Quality
  • Electro-Mechanical Motor Brake

View our video of our Evolution Education Bandsaw Range

Click Image to Enlarge

Specification

  540 EVOLUTION 640 EVOLUTION
Solid Band Wheels Diameter 540mm* 640mm*
Blade Speeds 1600m/min 1600m/min
Motor power hp 3hp 3hp
Cutting Height Max. 350mm 400mm
Cutting Width Max. 520mm 620mm
Blade Length Min:4200mm - Max:4260mm Min:4770mm - Max:4810mm
Dust Suction Outlet 2xØ120 2xØ120
Table Size 520 x 720mm 600 x 885mm
Overall Dimensions (W x D x H) 1540 x 1170 x 2310mm 1700 x 1250 x 2500mm
Overall Packing Dimensions 1200 x 800 x 2170mm 1200 x 800 x 2360mm
Net Weight 260kg 380kg

Optional Accessories

Protractor Square Mod2 Goniometric Square Mod1 Lower blade guide with bronze and ceramic elements Upper blade guide with bronze and ceramic elements Wheels for moving - Mobility kit
