BS840 Wood & Plastic Cutting Band Saw

price from £POA+VAT

Band saw in reinforced steel

STANDARD EQUIPMENT

CE

  • 400V/3/50 Self-braking Motor
  • Solid Flywheels, Rubber Covered
  • Cleaning Brush on Lower Wheel
  • Tilting Table, 0-20°
  • Blade Tension Gauge
  • Parallel Guide
  • Upper Saw Blade Guide with Bearing System
  • Lower Saw Blade Guide with Bearing System
  • Increase Motor Power is Available

Click Image to Enlarge

Specification

  BS 840
Flywheels Diameter 840mm
Blade Speeds 1600m/min
Motor Power hp 5,5(4)kW
Cutting Height Max. 540mm
Cutting Width 820mm
Table Sizes 820 x 1160mm
Blade Length Min:6030mm -
Max:6110mm
Dust Suction Outlets 2xØ140
Overall Dimensions 1410 x 820 x 2650mm
Packing Dimensions 2650 x 750 x 1350mm
Net Weight 580kg

Optional Accessories

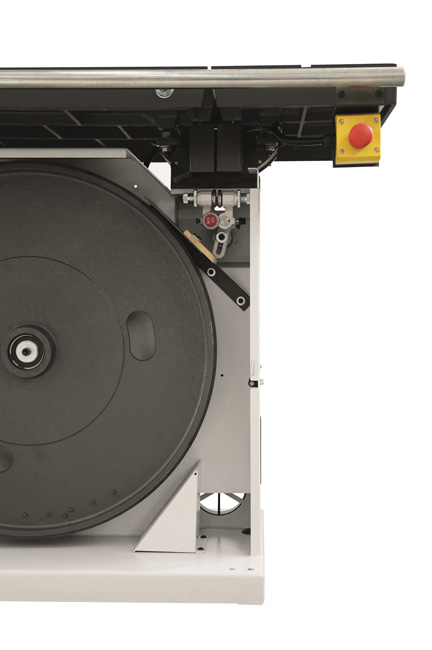

Sliding side guide with mitre fence size 2 Supplementary stop on the front side of the table Mobility kit Sliding mitre fence mod.1 Sliding mitre fence mod.2 Circular cutting and sanding device
