SWING - Tilting Band Saws with Sliding Carriage Range
price from £POA+VAT
Tilting bandsaw with carriage
Suitable for cutting wood, beams, insulating materials and much more
Guarantees safety for the operator and very high precision at every degree of inclination
Electric Band Saw Tilting 0°-45°
Maximum Cutting Height @ 45°: 300mm
STANDARD EQUIPMENT:
- 400V/3/50 Self-braking Motor
- Automatic Star-delta Starter
- Mechanical Tilt Indicator
- Solid Flywheels (1/3 crowned in the front) without Rubber
- Bronze Scrapers on Flywheels

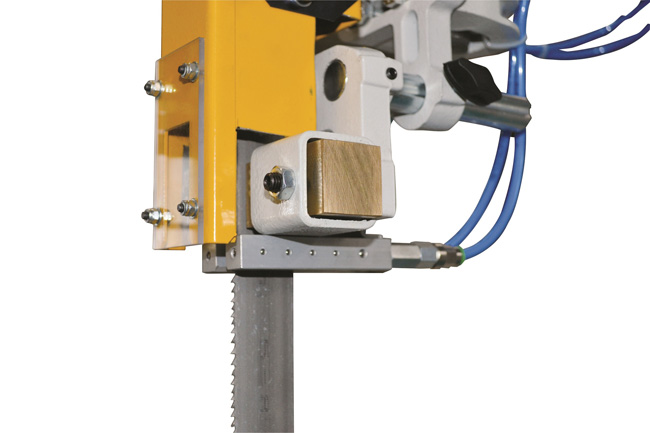

- Upper Saw Blade Guide with Bearing System
- Lower Saw Blade Guide with Bearing System
- Blade Tension Gauge
- Rack and Pinion Blade Guide Raising with Incorporated Blade Protection
- Trimming Support Table
Available with 1500, 2000, 2500, 3200 or 3700mm Carriage
_without_rubber.jpg)
Specification
| Swing 640 | Swing 740 | |
| Flywheels Diameter | 630mm | 730mm |
| Motor Power HP | 5.5hp (4) | 10hp (7.5) |
| Blade Speed *Different Speed: on request |
1600m/min* | 1600m/min* |
| Cutting Height Max. 90° | 500mm | 500mm |
| Cutting Height Max. 45° | 300mm | 300mm |
| Blade Length | Min:4830mm - Max:4900mm | Min:5310mm - Max:5420mm |
| Blade Width | Min:15mm - Max:45mm | Min:60mm - Max:80mm |
| 1500 | 2000 | 2500 | 3200 | 3700 | ||
| Carriage Dimensions | Swing 640 | 315 x 1500mm | 315 x 2000mm | 315 x 2500mm | 315 x 3200mm | 315 x 3700mm |
| Swing 740 | 315 x 1500mm | 315 x 2000mm | 315 x 2500mm | 315 x 3200mm | 315 x 3700mm | |
Optional Accessories
