BS Range of Industrial Band Saws

Our BS Industrial Band Saw Range offer some capacities beyond any competition, but all often exceptional build quality and performance.

BS440/BS442

BS440/BS442

was £3,350+VAT Autumn Sale: £2,995+VAT

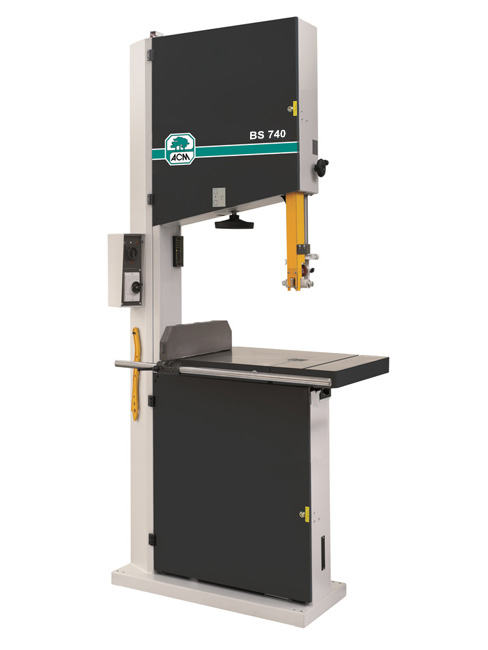

BS740

BS740

was £6,325+VAT Autumn Sale: £5,495+VAT

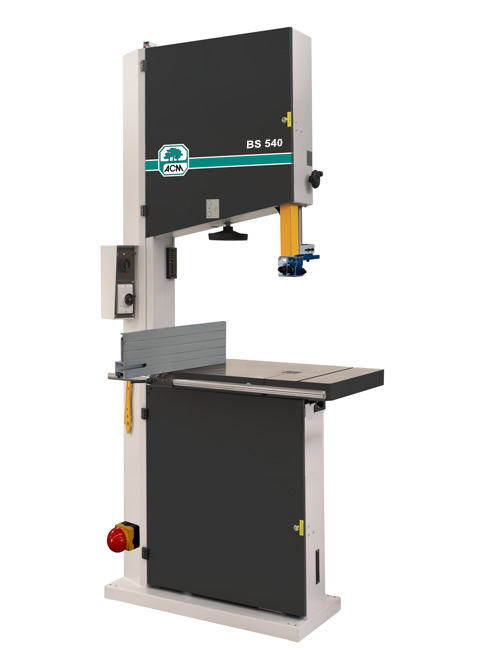

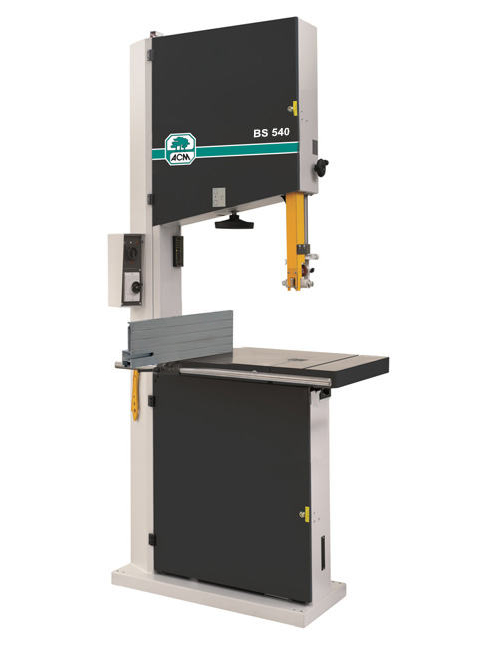

BS540/BS542

BS540/BS542

was £4,050+VAT Autumn Sale: £3,495+VAT

BS840

BS840

was £7,810+VAT Autumn Sale: £6,995+VAT

BS640/BS642

BS640/BS642

was £5,250+VAT Autumn Sale: £4,495+VAT

BS940

BS940

was £9,750+VAT Autumn Sale: £8,495+VAT

Solid flywheels, rubber covered Band Saw Back Cleaning brush on lower wheel Tilting table, 0-20° Sliding mitre Fence Mod 1

Optional Accessories

Circular Cutting Attachment Ceramic Guides Ceramic Guides Table Sliding Side Guide with Mitre Fence Sliding mitre Fence Mod 2 Mobility Kit

Specification

BS440 BS442 BS540 BS542 BS640 BS642 BS740 BS840 BS940
Wheel Diameter 440 440 540 540 640 640 740 840 940
Blade Speed (m/min) 1600 800-1600 1600 800-1600 1600 800-1600 1600 1600 1600
Electro-Mechanical Braked Motor HP 2 1.6 & 2.3 3 2 & 3 3 3 & 4 5.5 10 10
Available in 240 Volt Single Phase ✔ ✖ ✔ ✖ ✔ ✖ ✖ ✖ ✖
Available in 415 Volt Three Phase ✖ ✔ ✖ ✔ ✖ ✔ ✔ ✔ ✔
Blade Tension Indicator ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Key Locked Security System On Doors ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Cast Iron Band Wheels ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Cut Height (mm) 320 320 350 350 400 400 450 540 560
Cutting Width (mm) 410 410 520 520 620 620 720 820 910
Table Size (mm) 420 x 580 420 x 580 520 x 720 520 x 720 600 x 885 600 x 885 710 x 1000 820 x 1120 820 x 1160
Max Blade Width (mm) 30 30 30 30 30 30 35 45 50
Blade Size (min/max) 3650/3700 3650/3700 4200/4260 4200/4260 4770/4800 4730/4810 5340/5420 6030/6110 6630/6700
Overall Dimensions (WxDxH) 830 x 560 x 1860 830 x 560 x 1860 870 x 620 x 1970 870 x 620 x 1970 1050 x 620 x 2180 1050 x 620 x 2180 1180 x 720 x 2430 1410 x 820 x 2650 1550 x 920 x 2900
Net Weight (kg) 200 200 240 240 350 350 450 580 700
Dust Outlet (mm) 2 x 120 2 x 120 2 x 120 2 x 120 2 x 120 2 x 120 2 x 120 2 x 140 2 x 140
