BSLL Aluminium Cutting Band Saw Range
price from £POA+VAT
Band Saw for aluminium, light alloys and special materials
STANDARD EQUIPMENT:
- 400V/3/50 Self-braking Motor
- Supplementary Stop on the Front Side of the Table
- Solid Flywheels (1/3 crowned in the front) without Rubber
- Bronze Scrapers on Flywheels
- Upper Saw Blade Guide with Bearing System
- Lower Saw Blade Guide with Bearing System
- Blade Tension Gauge

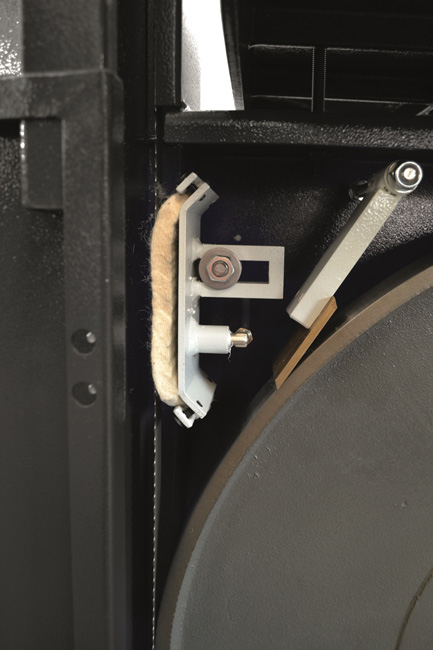

- Gravity-fed Blade Lubrication System on Felt Pad
- Increase Motor Power is Available
Specification
| BS 540 LL | BS 640 LL | BS 740 LL | BS 840 LL | BS 940 LL | |
| Fly-wheels Diameter | 530mm* | 630mm* | 730mm* | 830mm* | 930mm* |
| Blade Speed | Speed depends on the material to be cut and the type of blade used | ||||
| Motor Power | 2hp | 3hp | 4hp | 5,5hp | 7,7hp |
| Cutting Height Max. | 350mm | 400mm | 450mm | 520mm | 560mm |
| Cutting Width Max. | 510mm | 610mm | 710mm | 810mm | 910mm |
| Blade Length | Min:4170mm - Max:4250mm |
Min:4710mm - Max:4770mm |
Min:5300mm - Max:5400mm |
Min:6000mm - Max:6100mm |
Min:6590mm - Max:6690mm |
| Dust Suction Outlet | 2xØ120 | 2xØ120 | 2xØ120 | 2xØ140 | 2xØ140 |
| Table Size |
520 x 720mm | 600 x 885mm | 710 x 1000mm | 800 x 1160mm | 800 x 1250mm |
| Overall Dimensions (W x D x H) | 870 x 620 x 1970mm | 1050 x 620 x 2140mm | 1180 x 720 x 2430mm | 1410 x 820 x 2650mm | 1550 x 920 x 2900mm |
| Overall Packing Dimensions | 900 x 700 x 2200mm | 1000 x 700 x 2350mm | 2450 x 750 x 1250mm | 2650 x 750 x 1350mm | 2900 x 50 x 1500mm |
| Poids Net | 240kg | 350kg | 450kg | 580kg | 700kg |
