BS RS3 Re-sawing Machine Band Saw Range

price from £POA+VAT

STANDARD EQUIPMENT

CE

  • 400V/3/50 Self-braking Motor
  • Front Emergency Stop Acted by Cable
  • Rear Push-button Emergency Stop
  • Solid Flywheels (1/3 Crowned in the Front) without Rubber
  • Bronze Scrapers on Flywheels
  • Gravity-fed Blade Lubrication System on Felt Pad
  • Automatic Star-delta Starter
  • Blade Tension Gauge
  • Wooden Insert Upper/lower Saw Blade Guide
  • Rack and Pinion Blade Guide Raising with Incorporated Blade
  • Increase Motor Power is Available

Feeders Available

BS 740 RS3"

Click Image to Enlarge

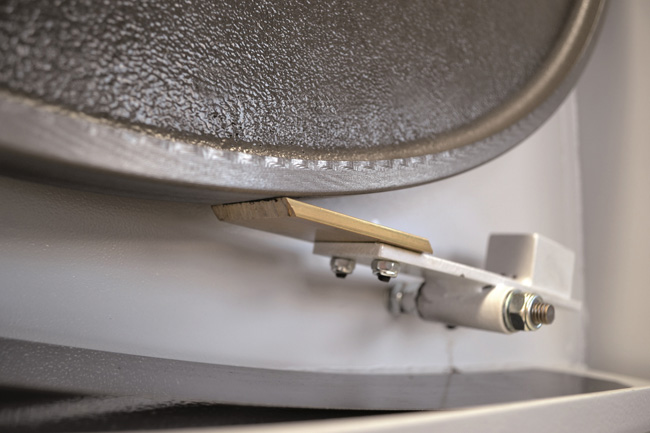

Solid flywheels (1/3 crowned in the front) without rubber Bronze scrapers on flywheels Gravity-fed blade lubrication system on felt pad

Specification

  BS740RS3" BS940RS3" BS 940 RS 3" special
Flywheels Diameter 730mm 930mm 930mm
Blade Speeds 1600m/min 1600m/min 1600m/min
Motor power hp 12,5kW (9) 15kW (11) 15kW (11)
Cutting Height Max. 450mm 550mm 600mm
Cutting Width 710mm 910mm 720mm
Table Size 860 x 1100mm 860 x 1100mm 860 x 1100mm
Table Tilting 0-20° x CE
0-45° nn CE		 0-20° x CE
0-45° nn CE		 0-20° x CE
0-45° nn CE
Blade Length Min:5310 x 80 x 0,9mm - Max:5420 x 80 x 0,9mm Min:6580 x 90 x 0,9mm - Max:6670 x 90 x 0,9mm Min:6580 x 90 x 0,9mm - Max:6670 x 90 x 0,9mm
Dust Suction Outlets 2xØ140 2xØ140 2xØ140
Net Weight 670kg 990kg 1030kg

Optional Accessories

Upper blade guide with bronze elements Mechanical system for table tilting Feeder
